Warrens Central Master Plan

Studio Blue Architects Inc Warrens Master Plan 0

We were one of 4 architectural practices invited to prepare a Master Plan for the redevelopment of the Williams Industries properties in the Warrens area, in a competition format. Williams Industries Inc. is a diversified Caribbean corporation with headquarters in Barbados and interests in 30 companies across the region. Warrens is one of the fastest growing suburban centres within Barbados, and our proposed master plan speaks to many of the missing ingredients in this area.

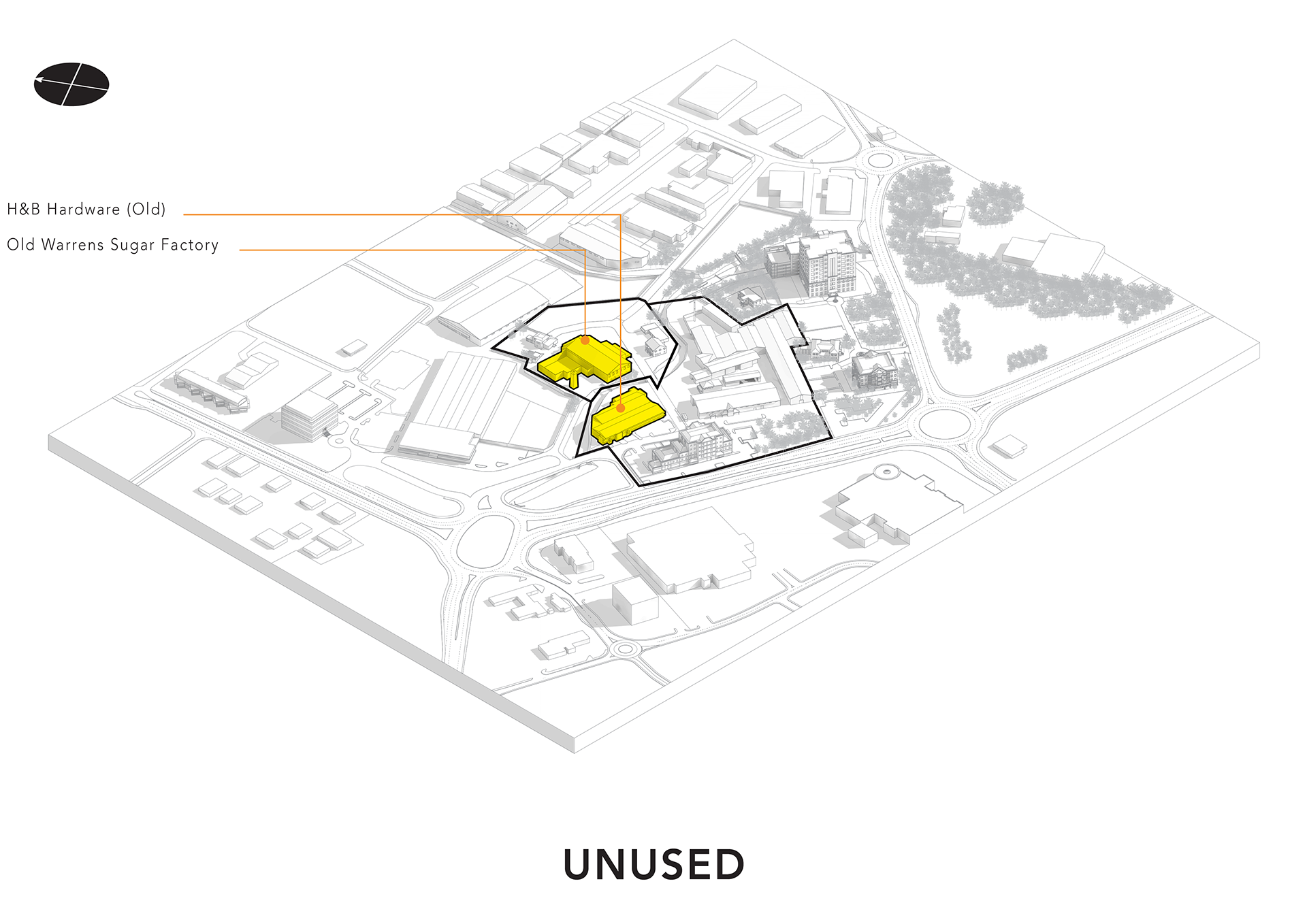

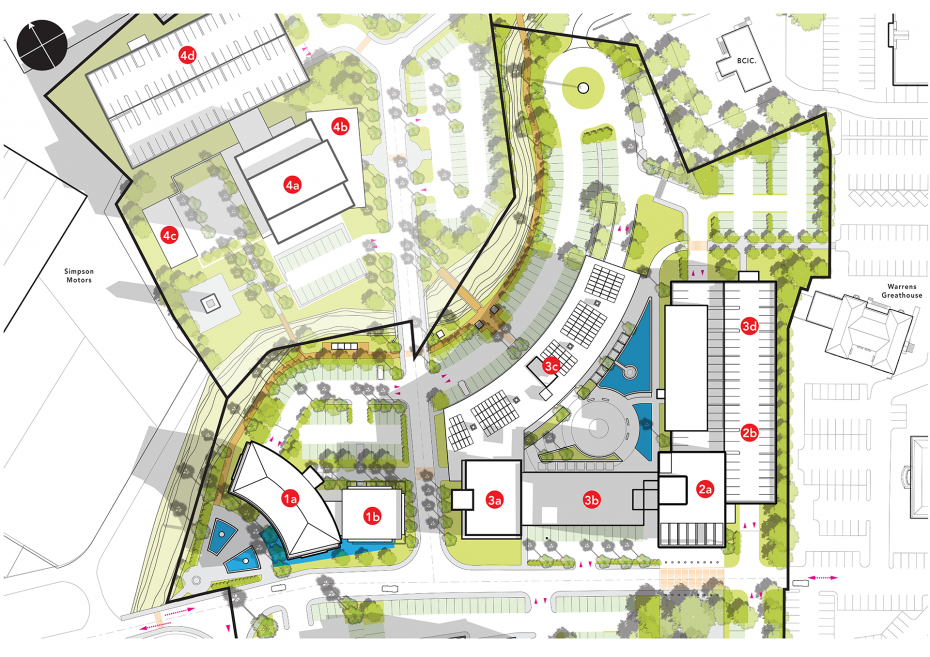

Our approach was to create a new, recognizable town centre with Civic spaces which are attractive and pleasant oases from the traffic jungle, entertainment and dining in walk-able settings, Sustainable retail, and leading edge office environments. The proposed new town centre is placed at the heart of the historic origins of the site; between the old sugar factory and Warrens’ plantation Great house, and surrounded by a dynamic collection of buildings ranging from 3 to 10 storeys.

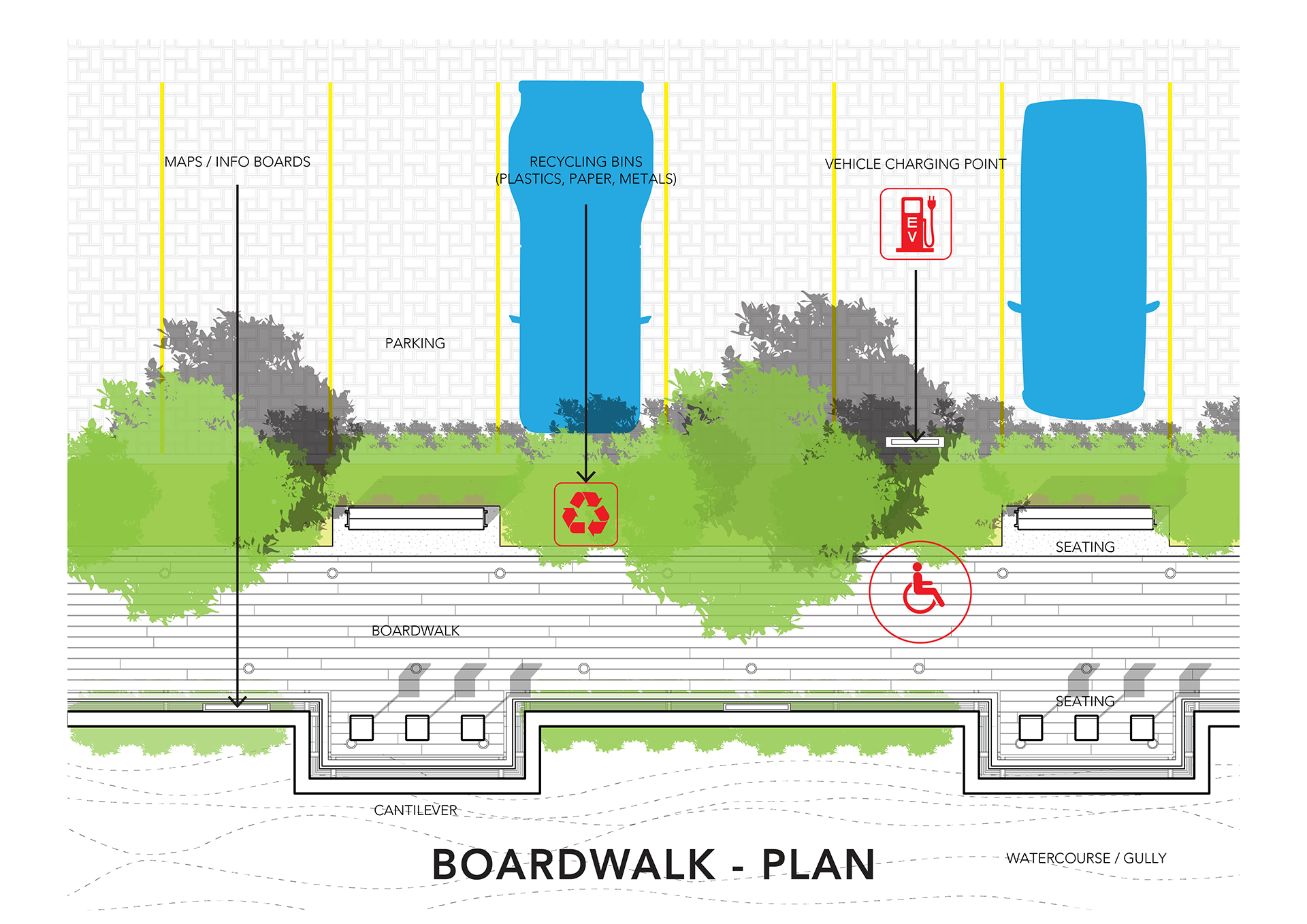

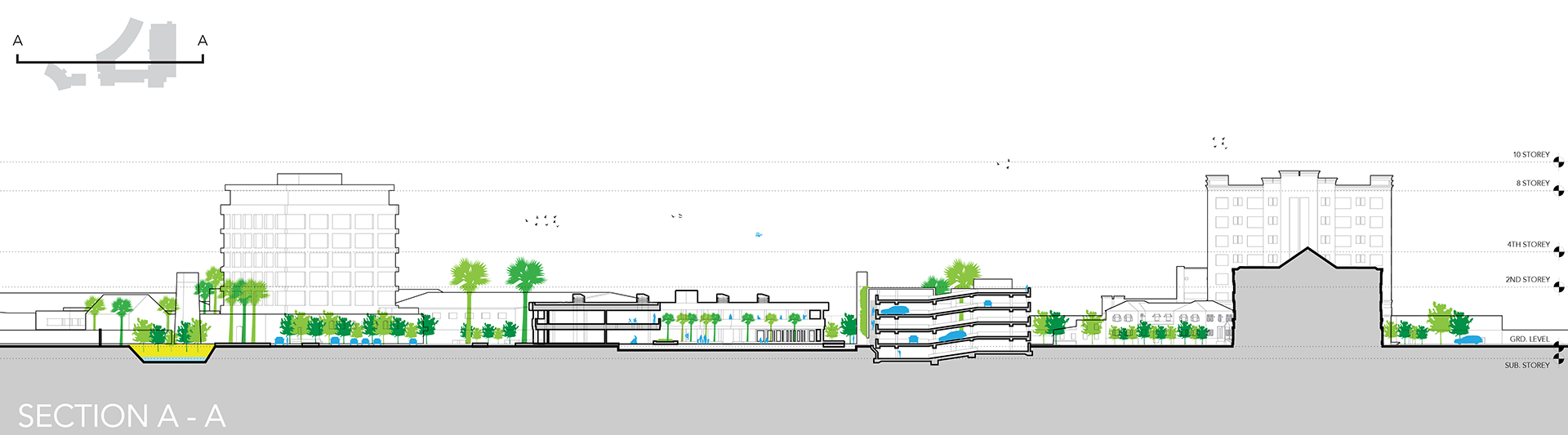

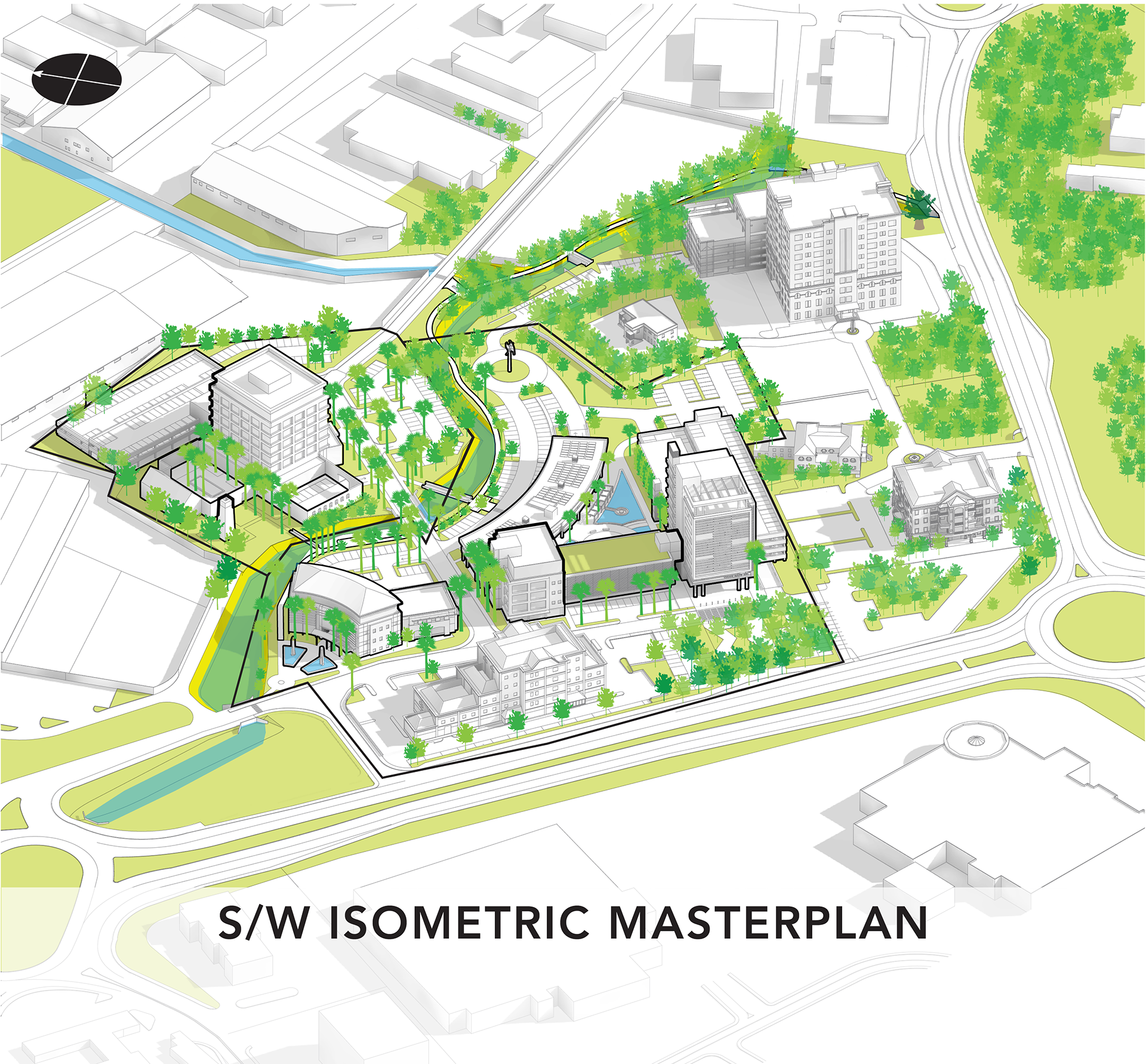

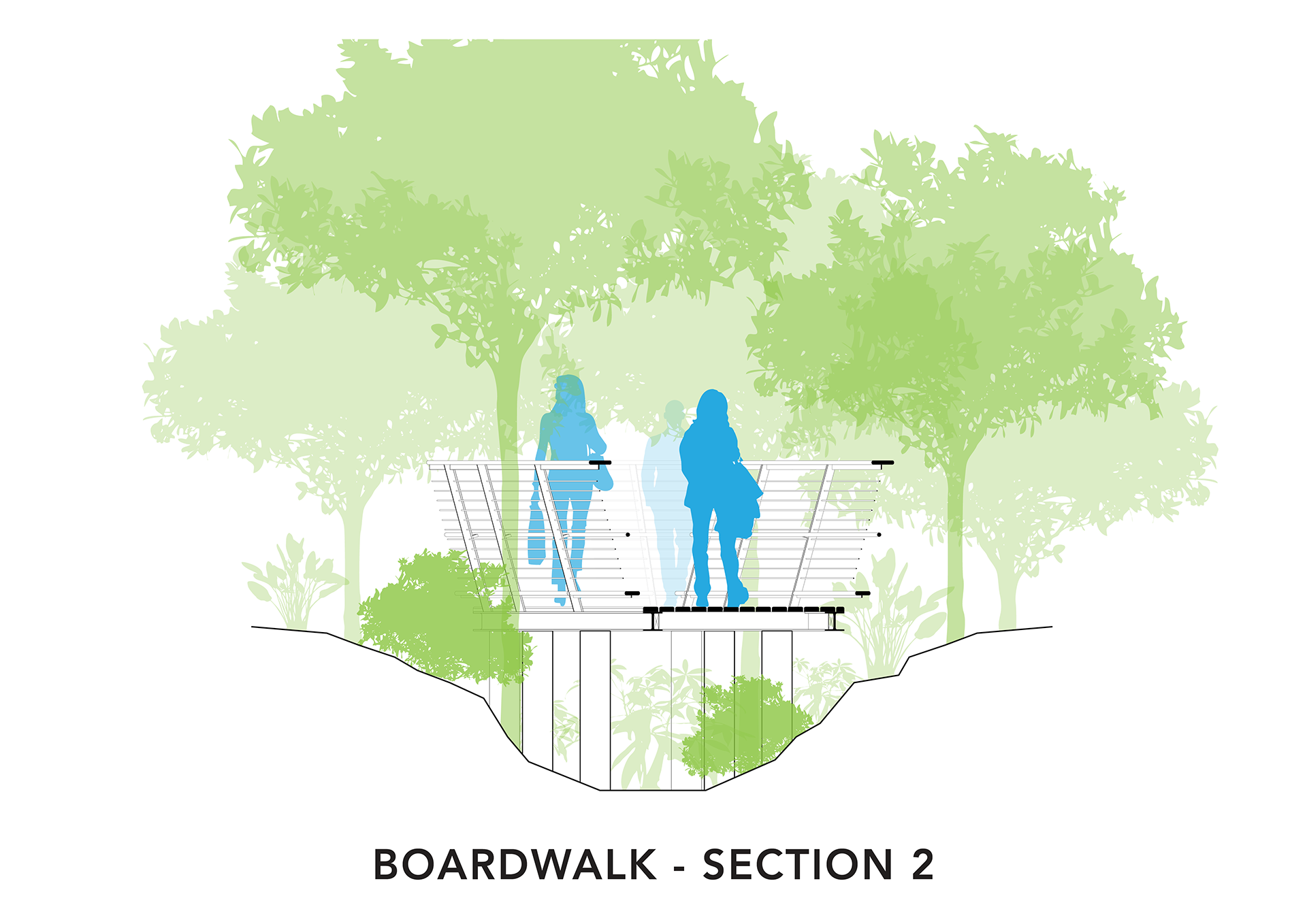

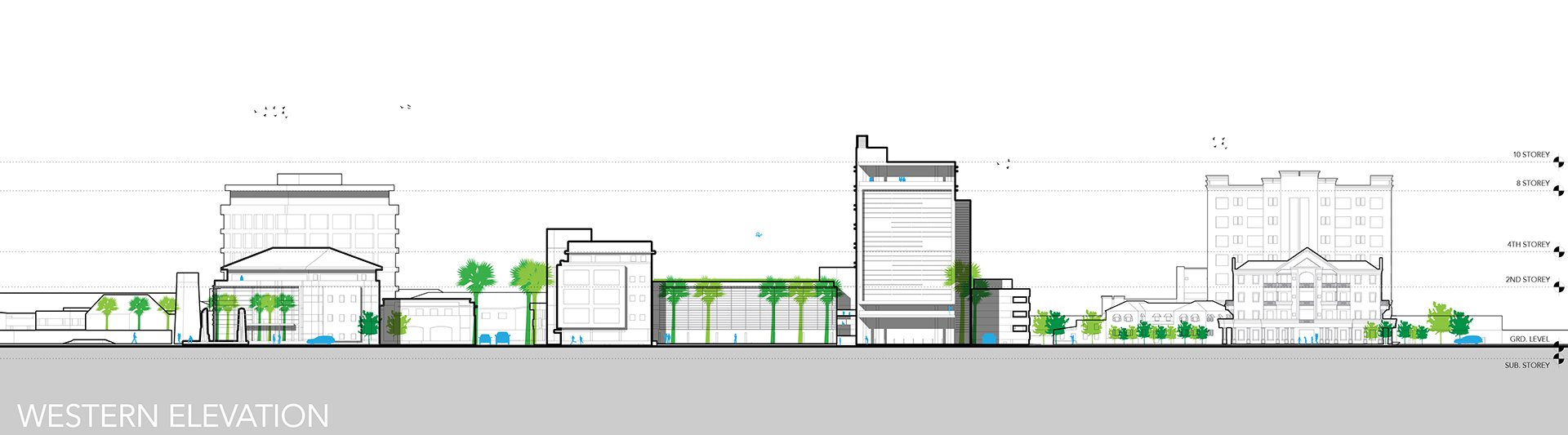

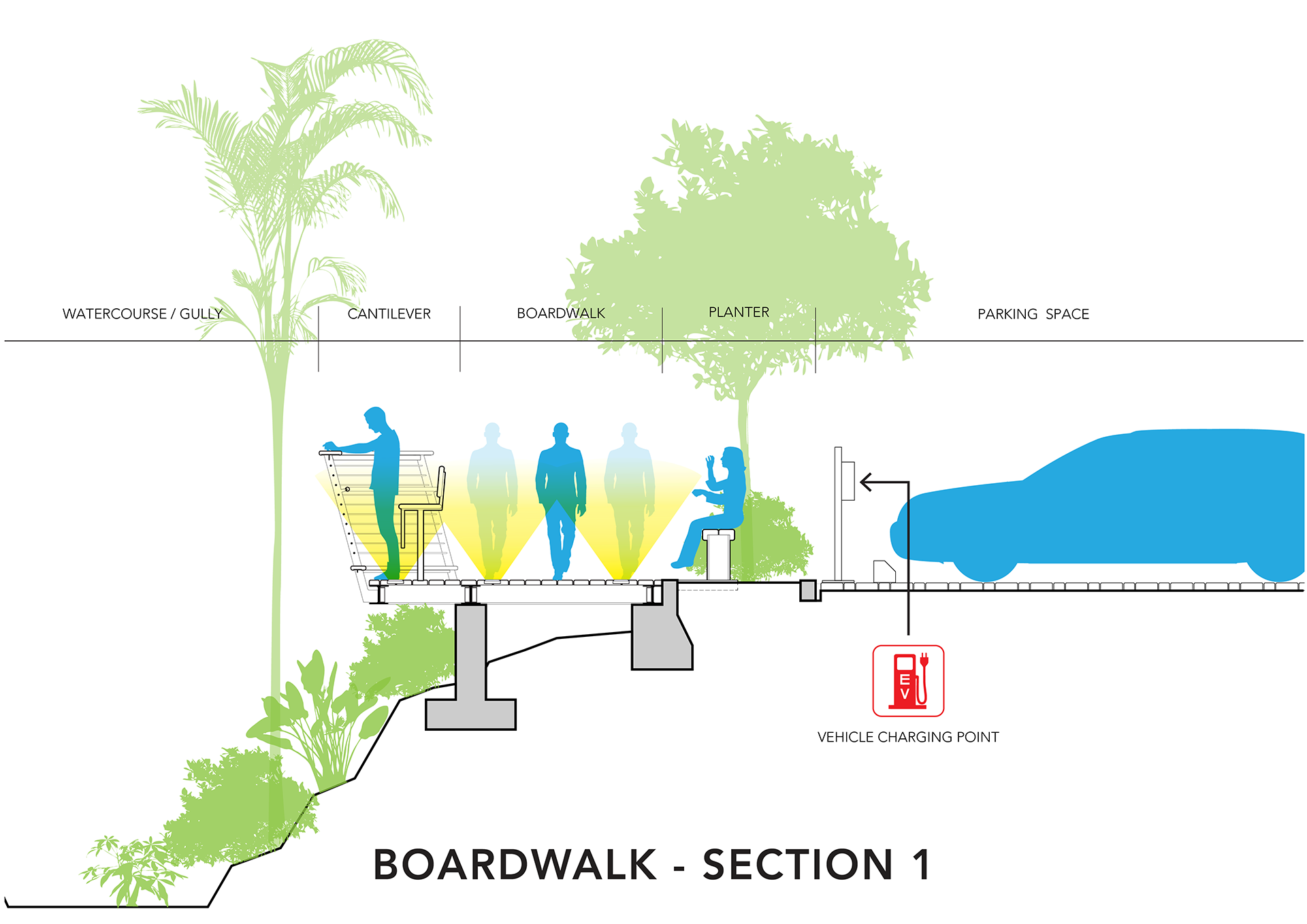

The scale of the buildings fluctuates across the site responding to the adjacent properties and existing infrastructure. A 10 storey tower fronts on to a new plaza and creates a visible beacon above the surrounding trees and buildings when approaching from the south on the Highway.  Approaching from the North, a 5-storey signature building addresses the main vehicular entrance into the new development. The scale steps down to 2 storeys on the east of the town centre where it meets the proposed linear park running along the existing watercourse and gully. The Linear park, featuring a boardwalk, creates pedestrian linkages with the surrounding communities and provides a green space for relaxing, exercise and street vendors.

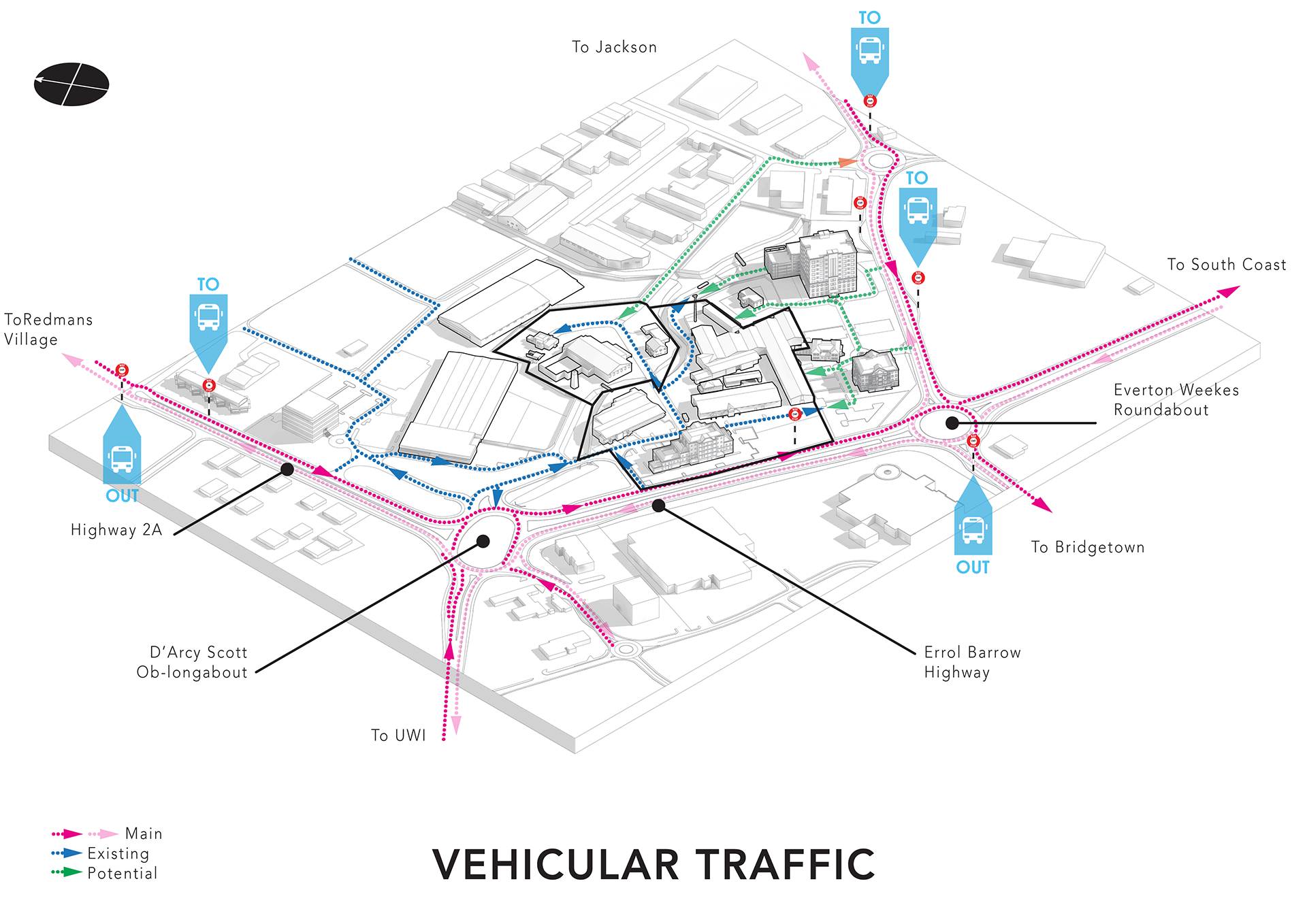

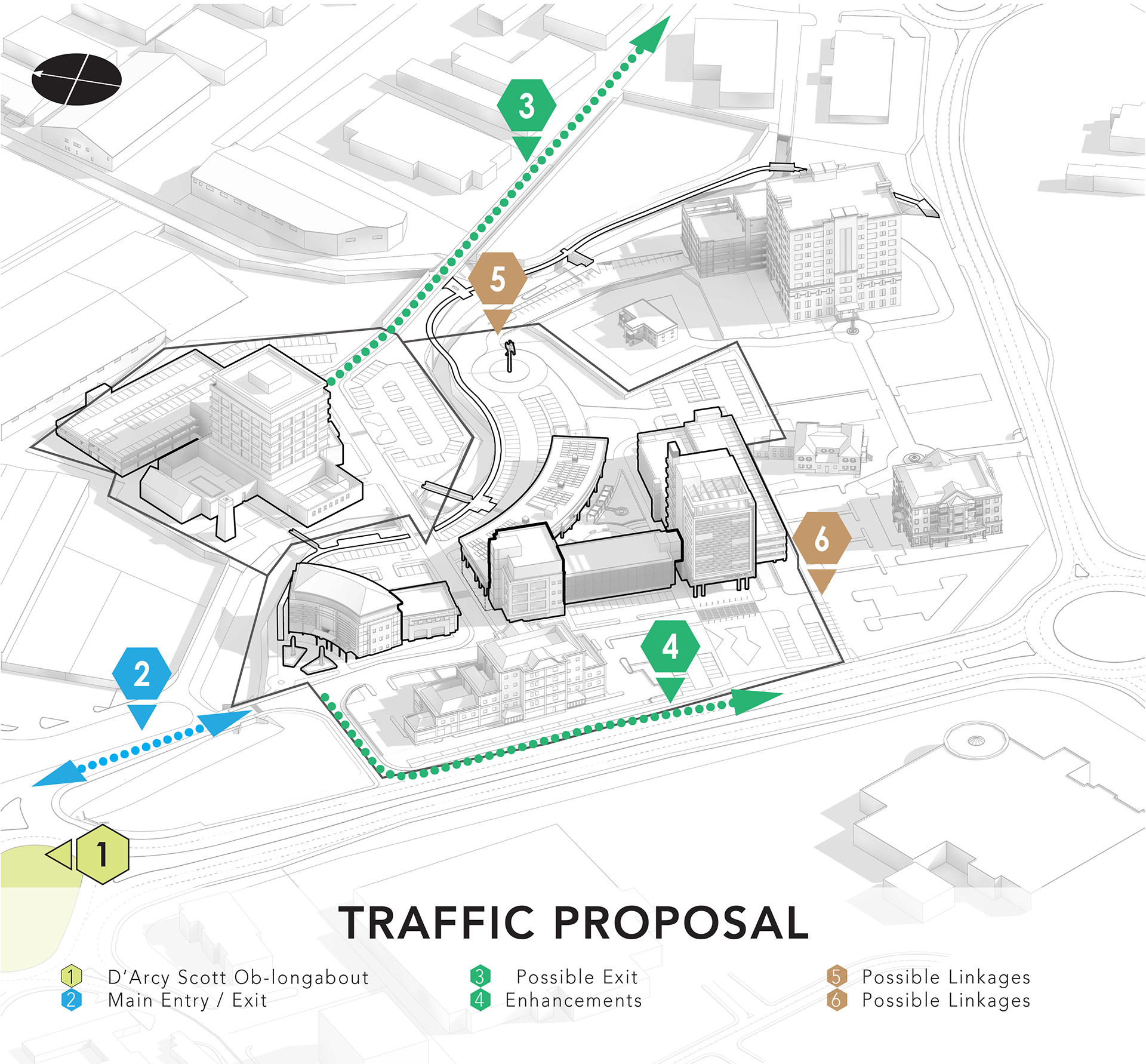

Traffic flows have been carefully conceived and parking spread between a multi-storey and dispersed across the site with extensive landscaping and shade trees. Provision is made for approximately 680 parking spaces.

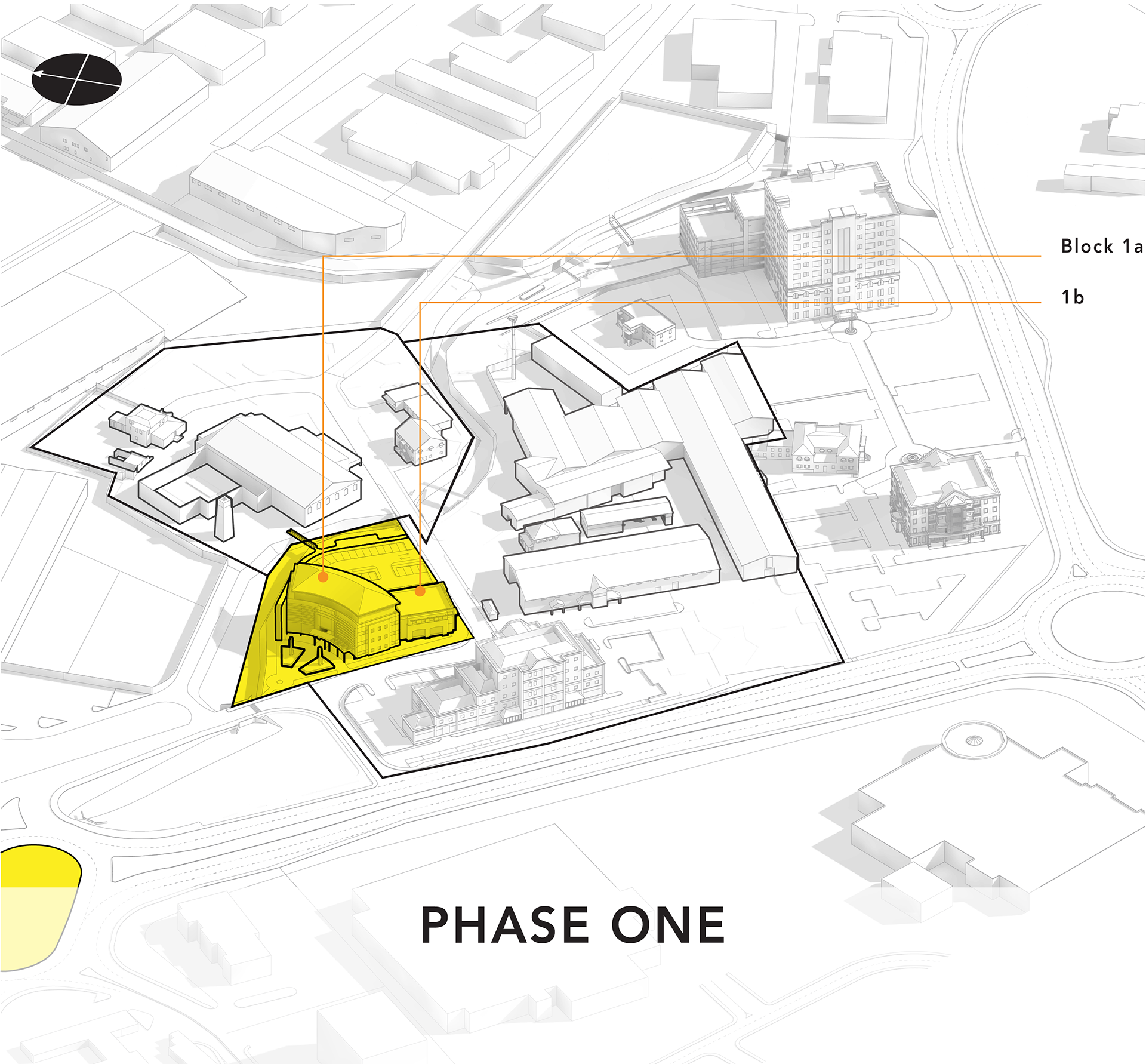

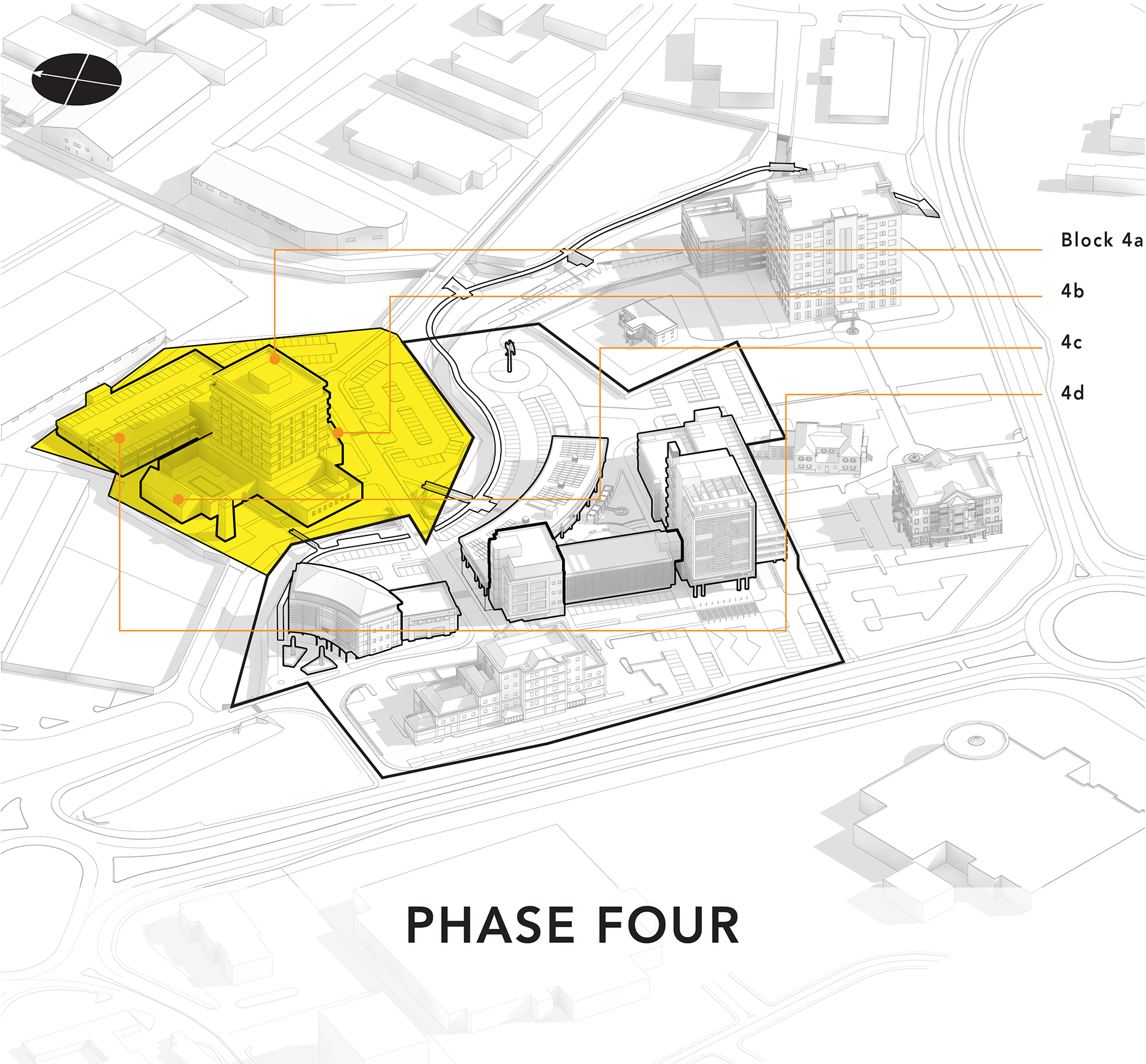

With almost 400,000sqft of new sustainable buildings complimented by facilities required for a major urban centre, the planned development executed in 4 phases could enhance Warren’s reputation as the leading business centre in the island. Taken together, we believe these elements would make the development plan financially sustainable.

Location

Warrens, St. Michael, Barbados

Stage

Competition Design 2014.

Size

397180 sq. ft. / 36899 sq. m.

Consultants

Civil & Structural Engineers

- Stantec Consulting Caribbean Ltd

Quantity Surveyors

– Cooper Kauffman Ltd

Planners

– Richard Gill Associates

Real Estate

– Property Consultancy Services

Eco Features

  • Pedestrian realm over vehicular
  • Photovoltaic Systems
  • Electrical vehicle charge stations
  • Naturally ventilated food court and retail circulation areas
  • Grass roofs
  • Landscape enhancement & Tree preservation
  • Nature walks
  • Rainwater Harvesting & re-use
  • Water features for evaporative cooling
  • Recycling collection points

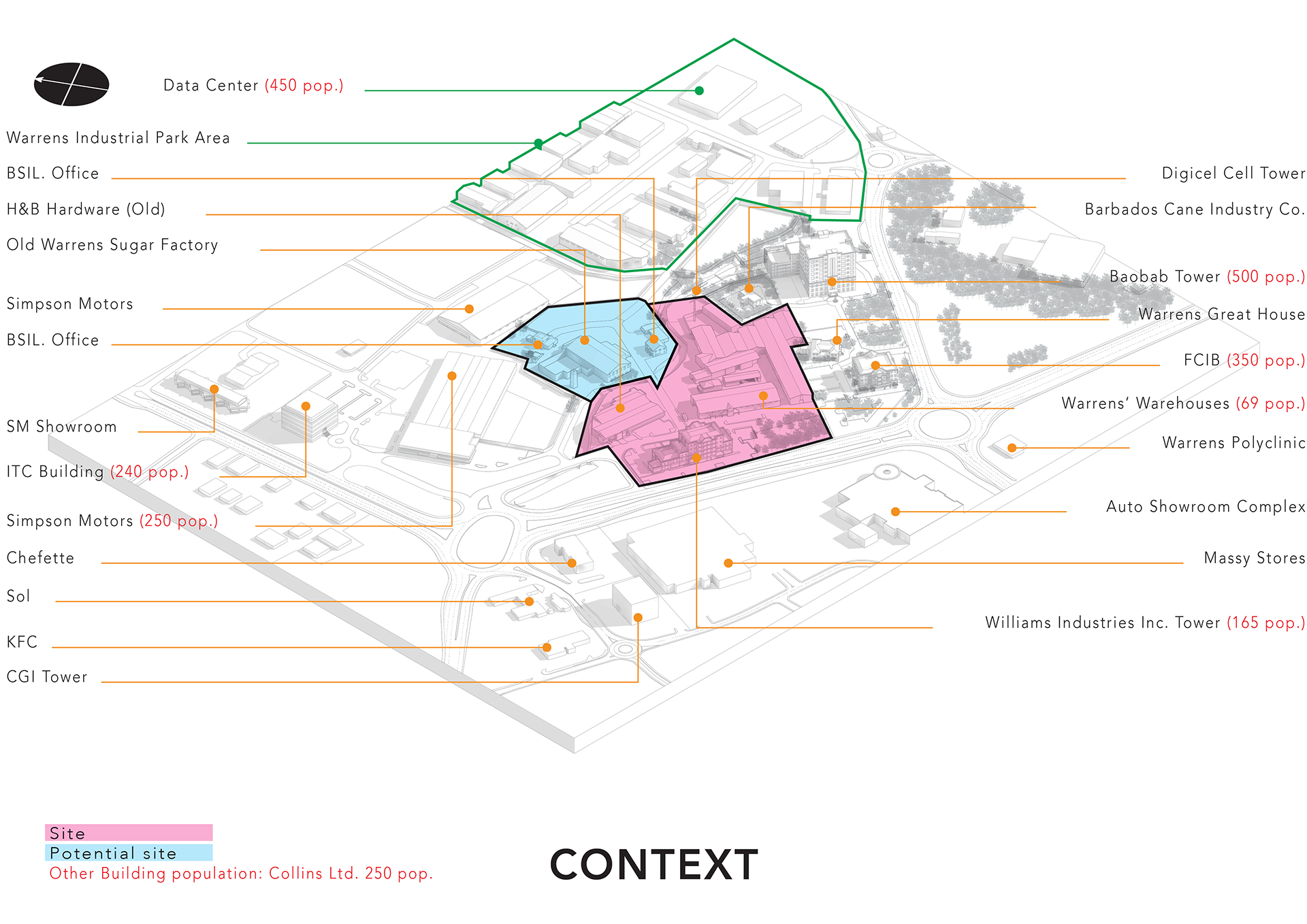

Studio Blue Architects Inc Warrens Master Plan Context
Studio Blue Architects Inc Warrens Master Plan  2aStudio Blue Architects Inc Warrens Master Plan  2b
Studio Blue Architects Inc Warrens Master Plan  3aStudio Blue Architects Inc Warrens Master Plan  3b
Studio Blue Architects Inc Warrens Master Plan  4aStudio Blue Architects Inc Warrens Master Plan  4b

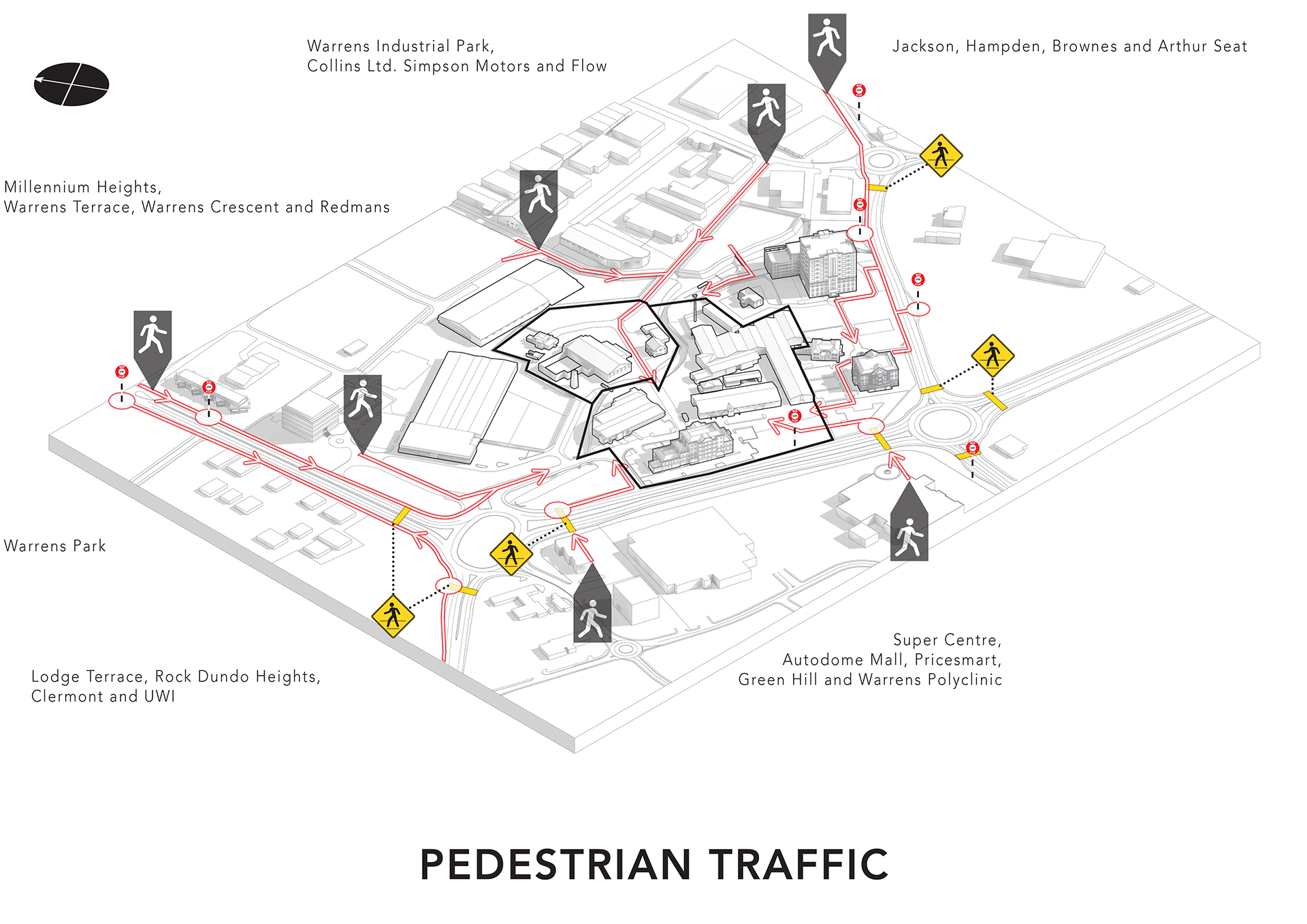

Studio Blue Architects Inc Warrens Master Plan  5
Studio Blue Architects Inc Warrens Master Plan  6

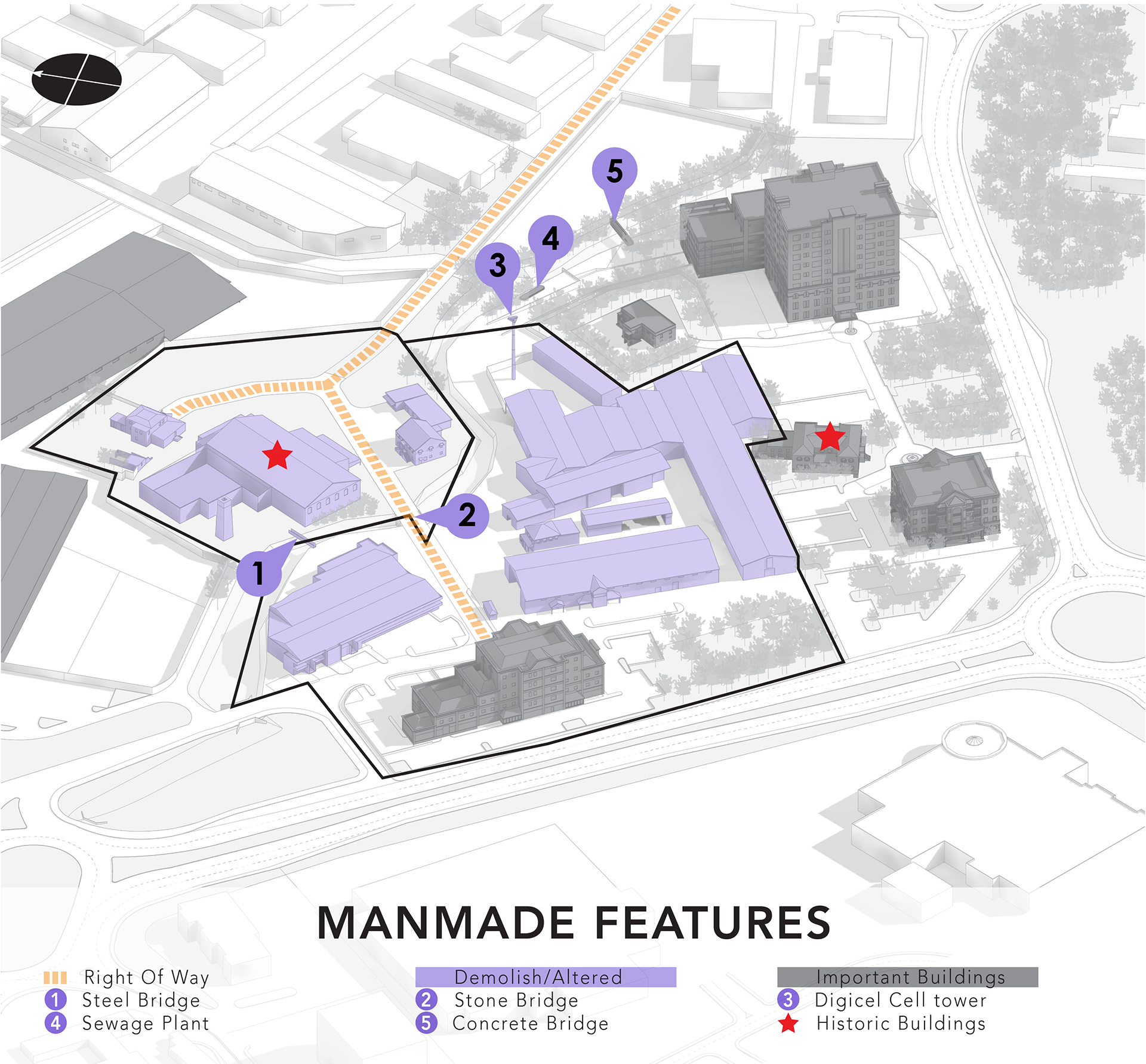

Studio Blue Architects Inc Warrens Master Plan 7

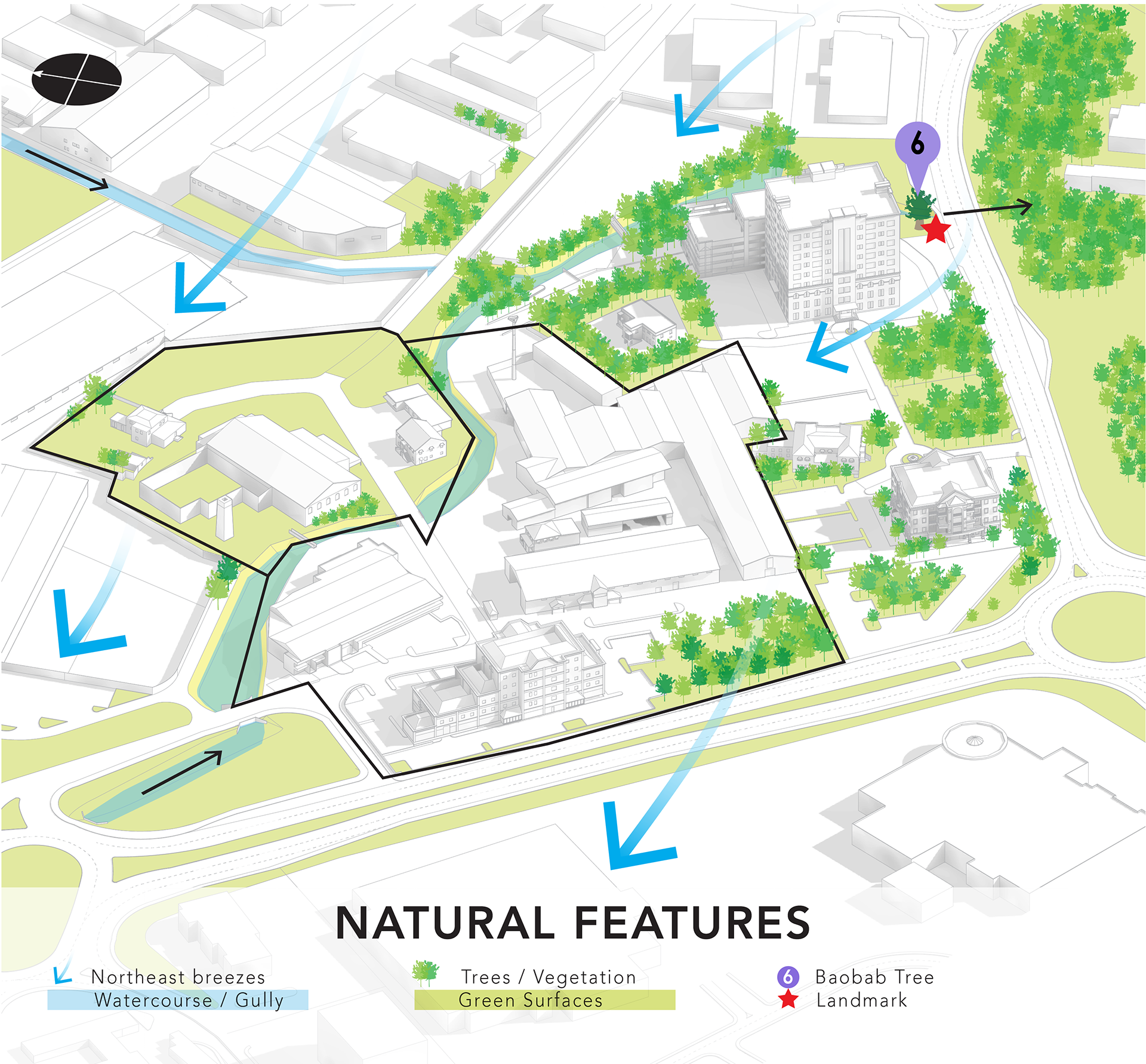

Studio Blue Architects Inc Warrens Master Plan 8
Studio Blue Architects Inc Warrens Master Plan 28
Studio Blue Architects Inc Warrens Master Plan 9aStudio Blue Architects Inc Warrens Master Plan 9b

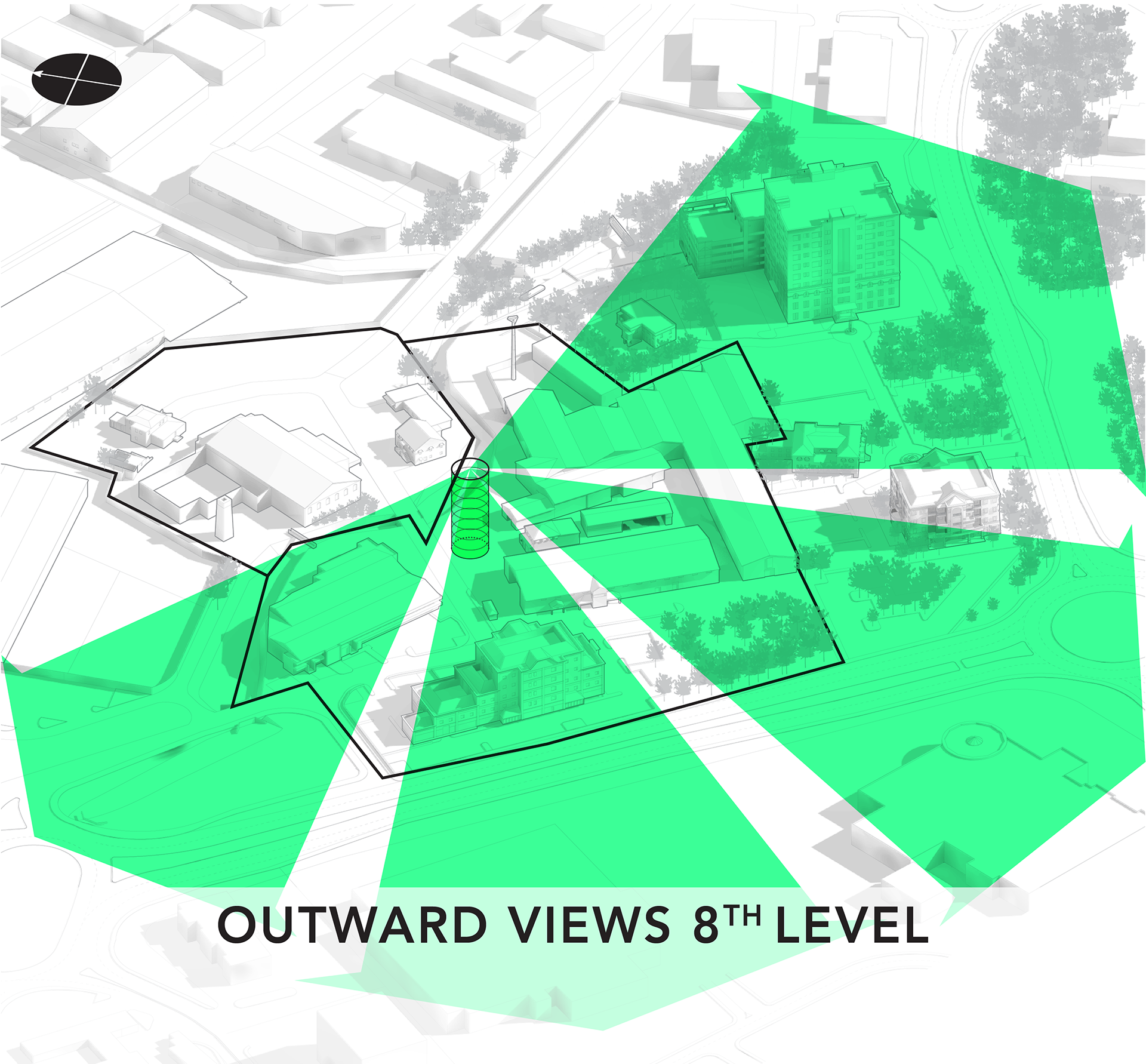

Studio Blue Architects Inc Warrens Master Plan 10aStudio Blue Architects Inc Warrens Master Plan 10b

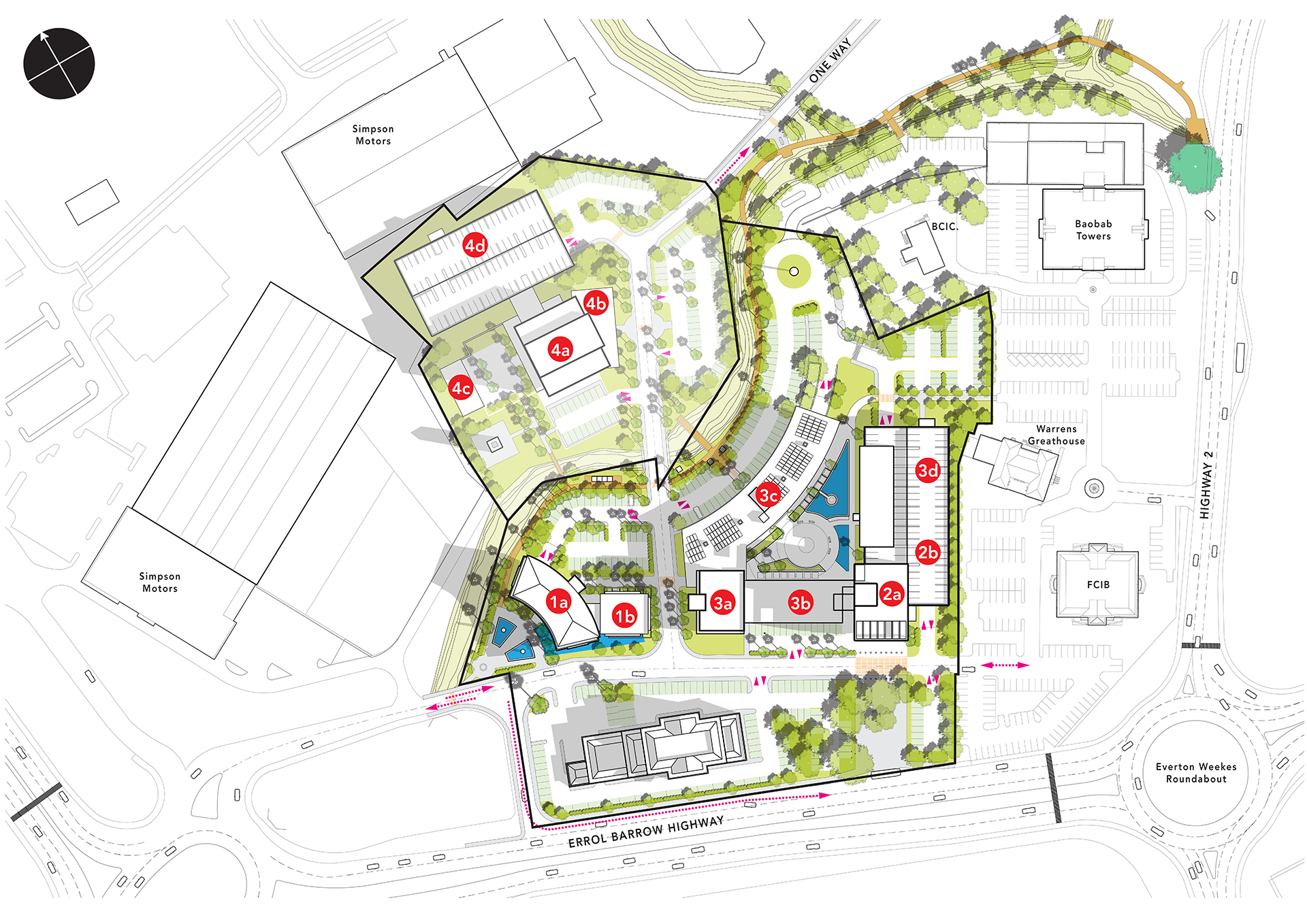

Studio Blue Architects Inc warrens Master Plan 12

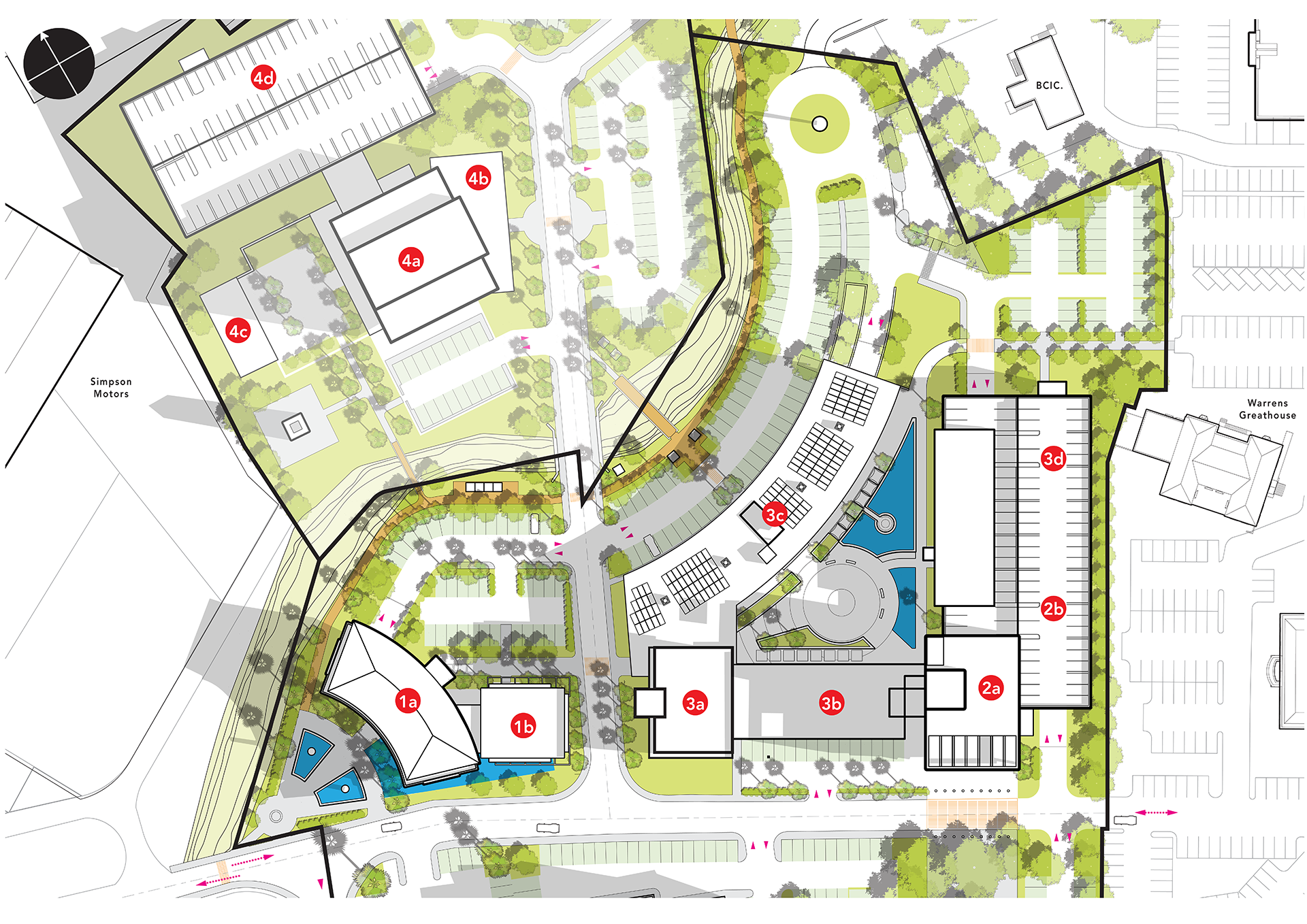

Studio Blue Architects Inc warrens Master Plan 11

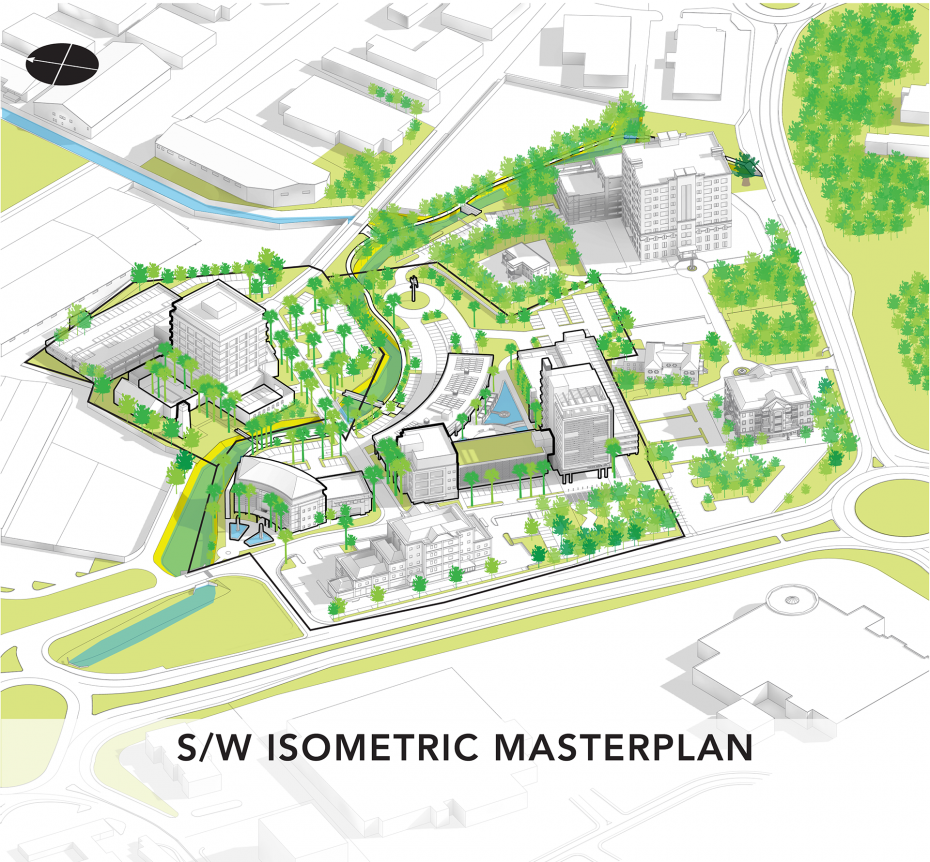

Studio Blue Architects Inc Warrens Master Plan 13

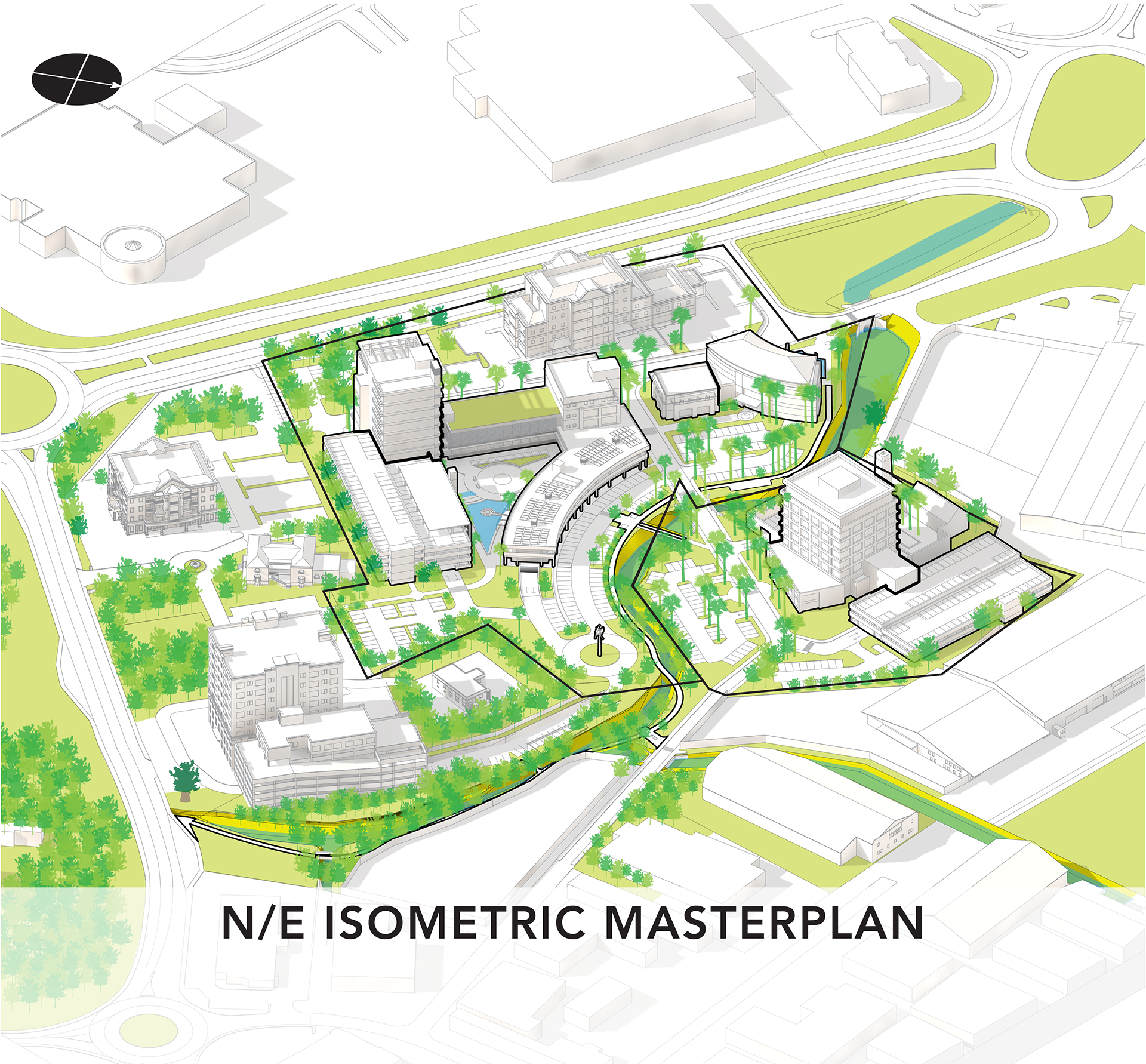

Studio Blue Architects Inc Warrens Master Plan 14

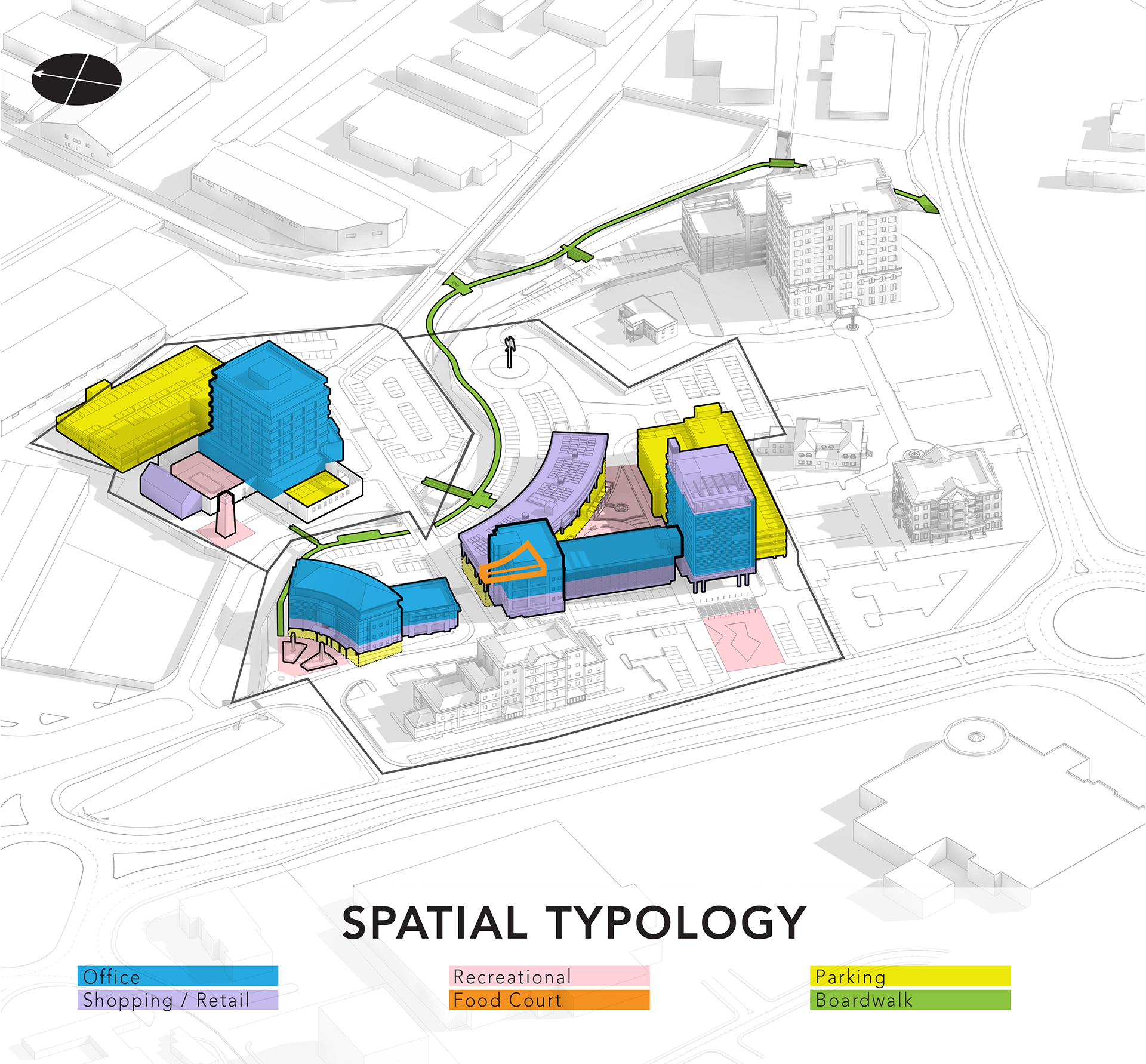

Studio Blue Architects Inc Warrens Master Plan 15

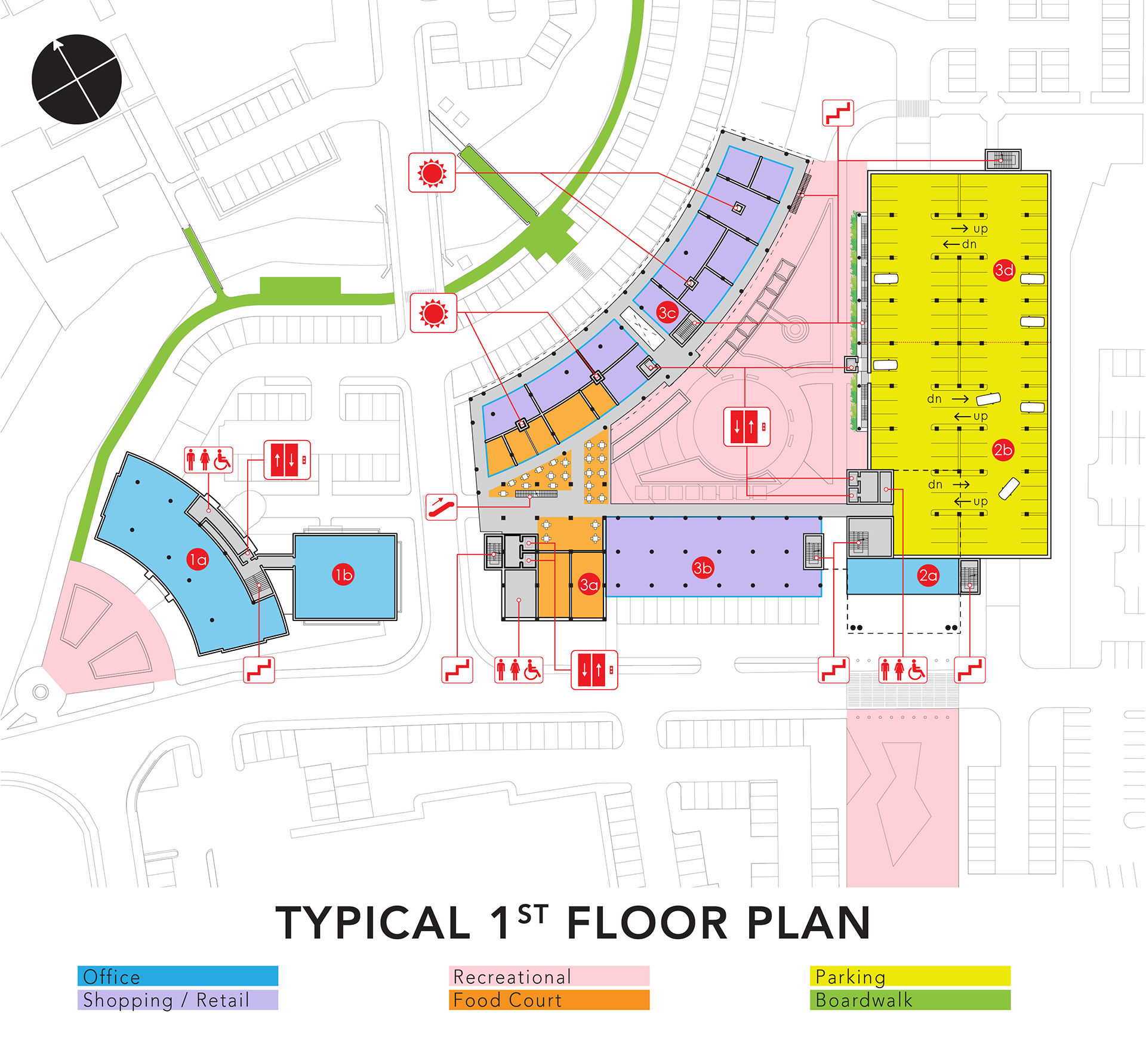

Studio Blue Architects Inc Warrens Master Plan 16

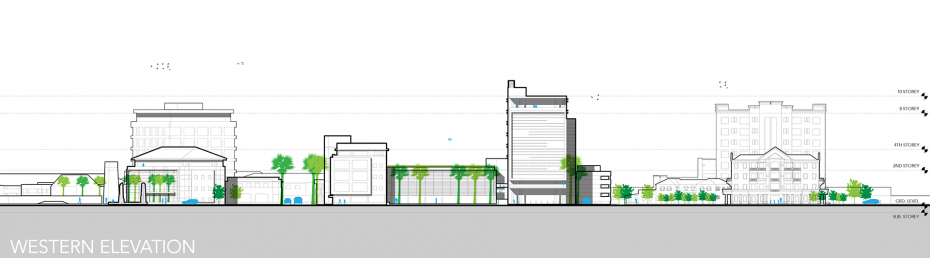

Studio Blue Architects Inc Warrens Master Plan 17
Studio Blue Architects Inc Warrens Master Plan 18
Studio Blue Architects Inc Warrens Master Plan 23

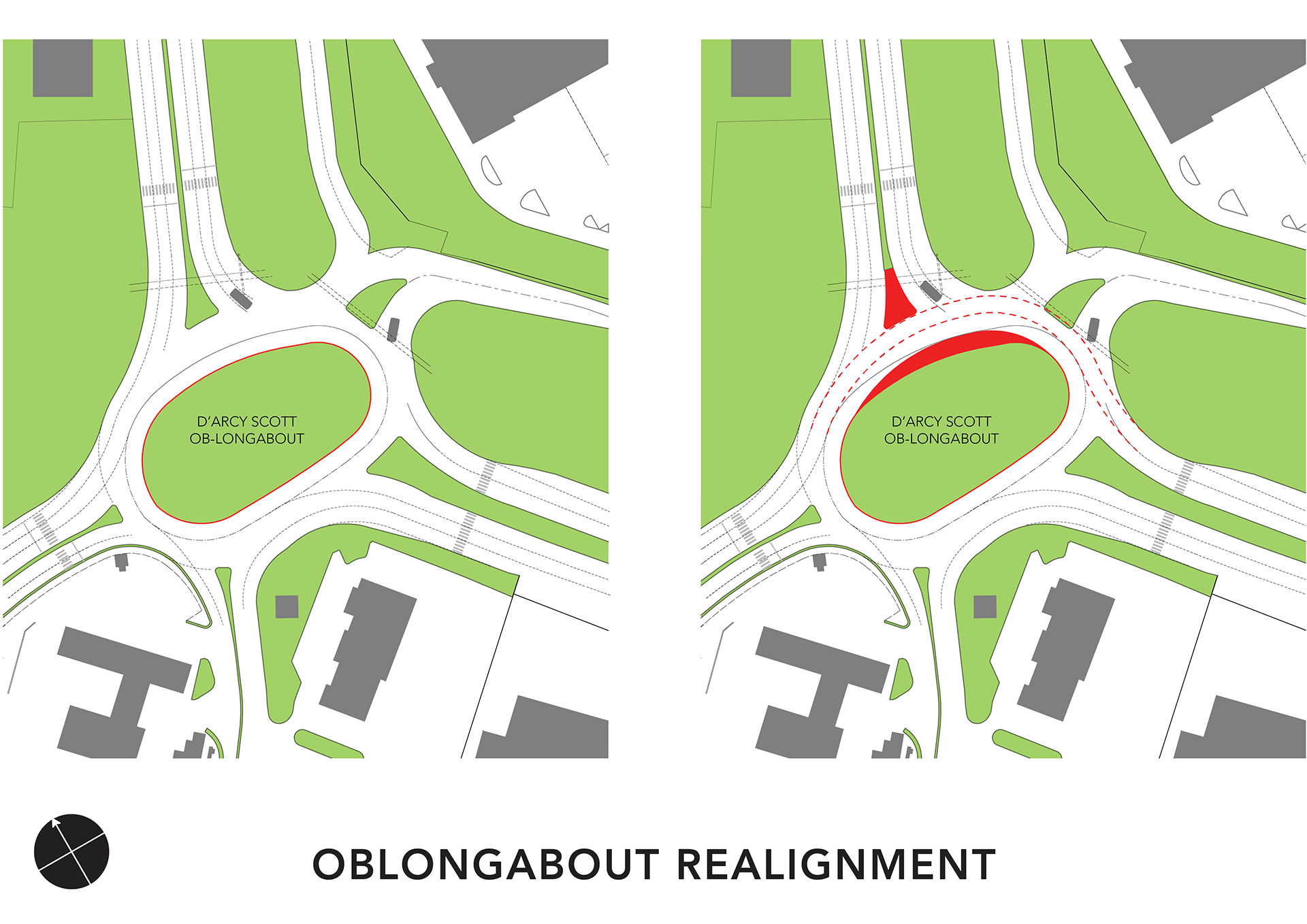

Studio Blue Architects Inc Warrens Master Plan 24aStudio Blue Architects Inc Warrens Master Plan 24b
Studio Blue Architects Inc Warrens Master Plan 25aStudio Blue Architects Inc Warrens Master Plan 25b

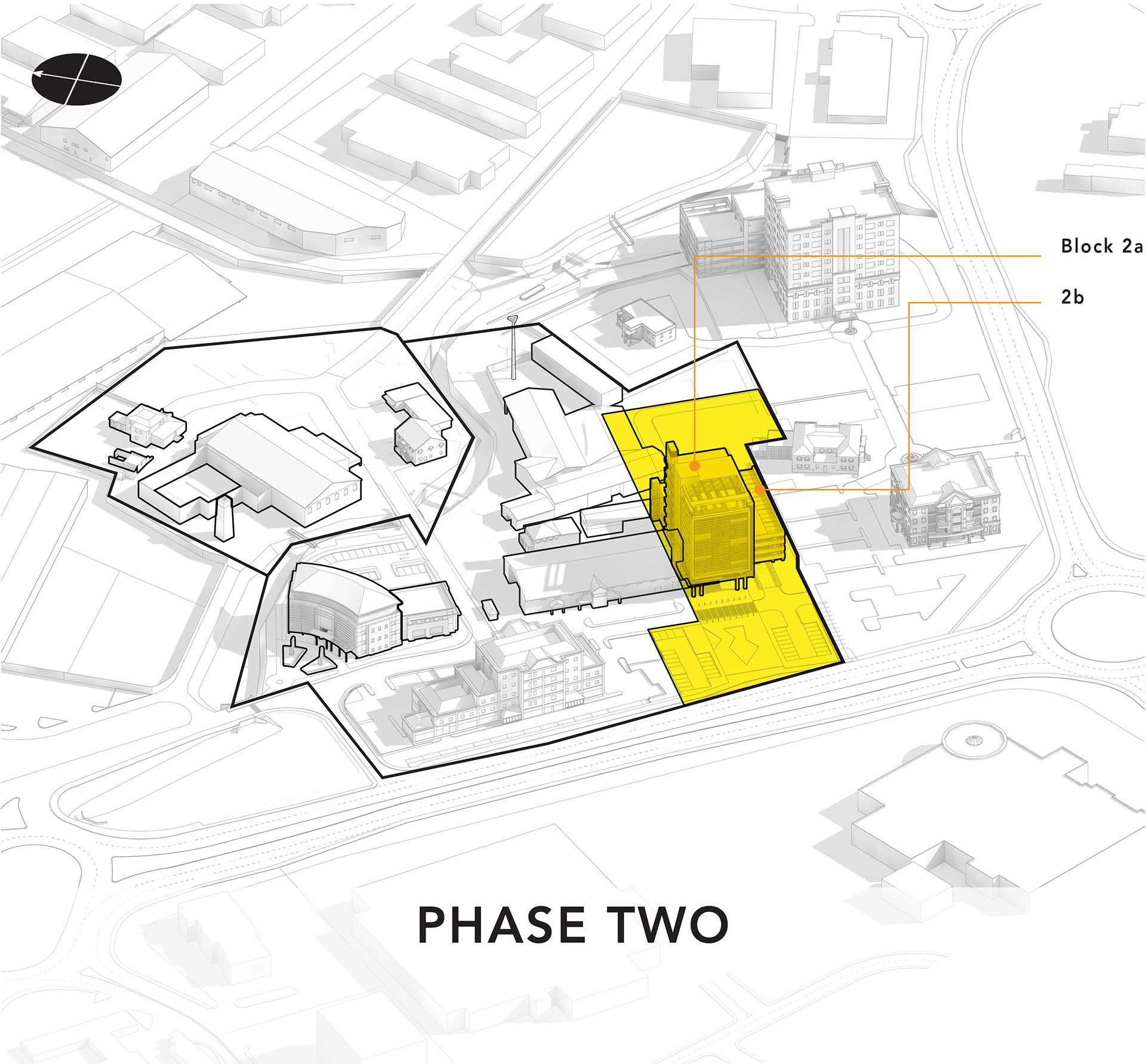

Studio Blue Architects Inc Warrens Master Plan 26aStudio Blue Architects Inc Warrens Master Plan 26b

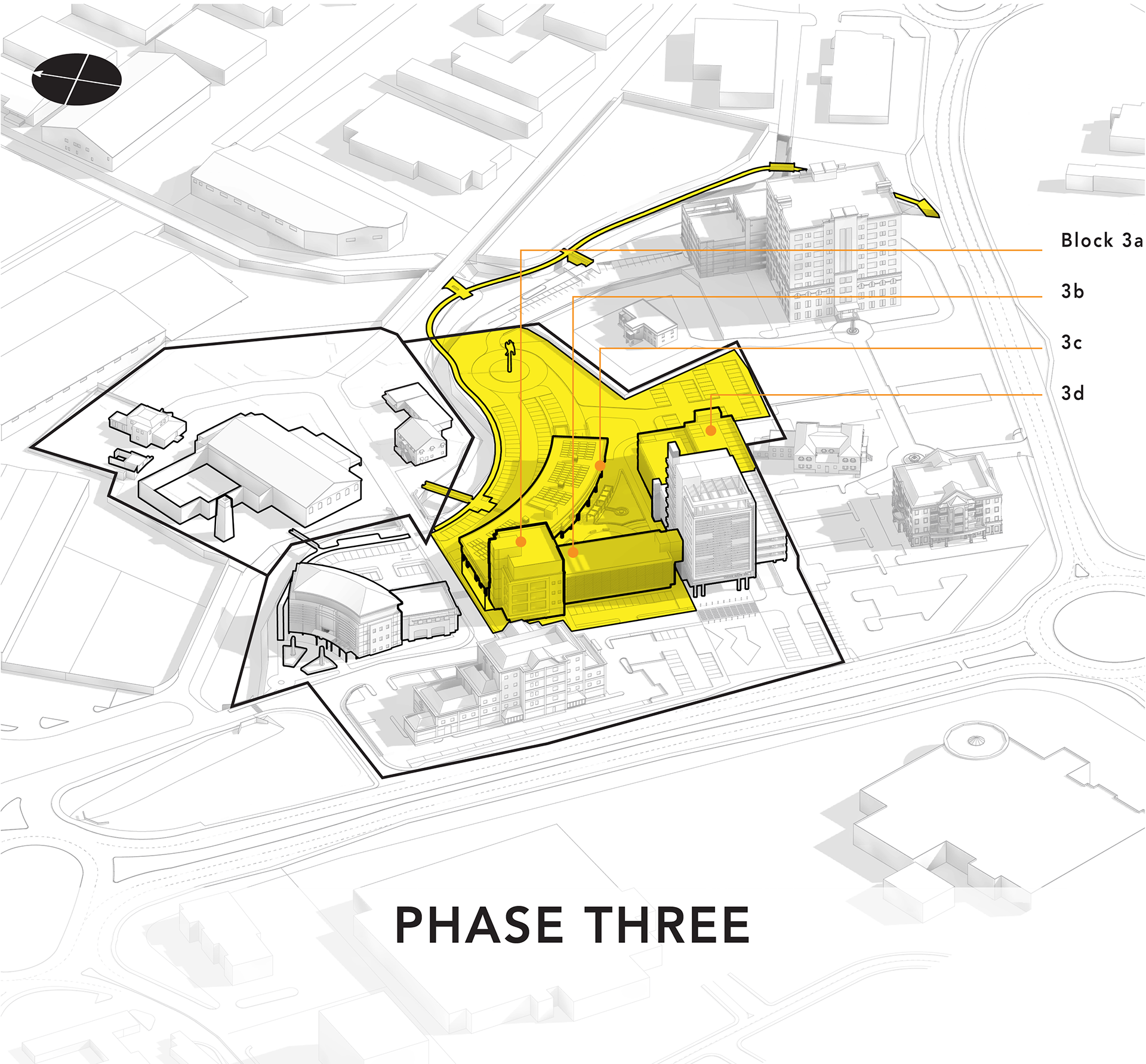

Studio Blue Architects Inc Warrens Master Plan 27aStudio Blue Architects Inc Warrens Master Plan 27b
